判题模块

判题机的部署

项目地址: https://github.com/judge0/judge0/releases/tag/v1.13.1

根据给出的docker compose文件和配置文件来进行部署

cd judge0-v1.13.1
docker-compose up -d db redis
sleep 10s
docker-compose up -d
sleep 5s

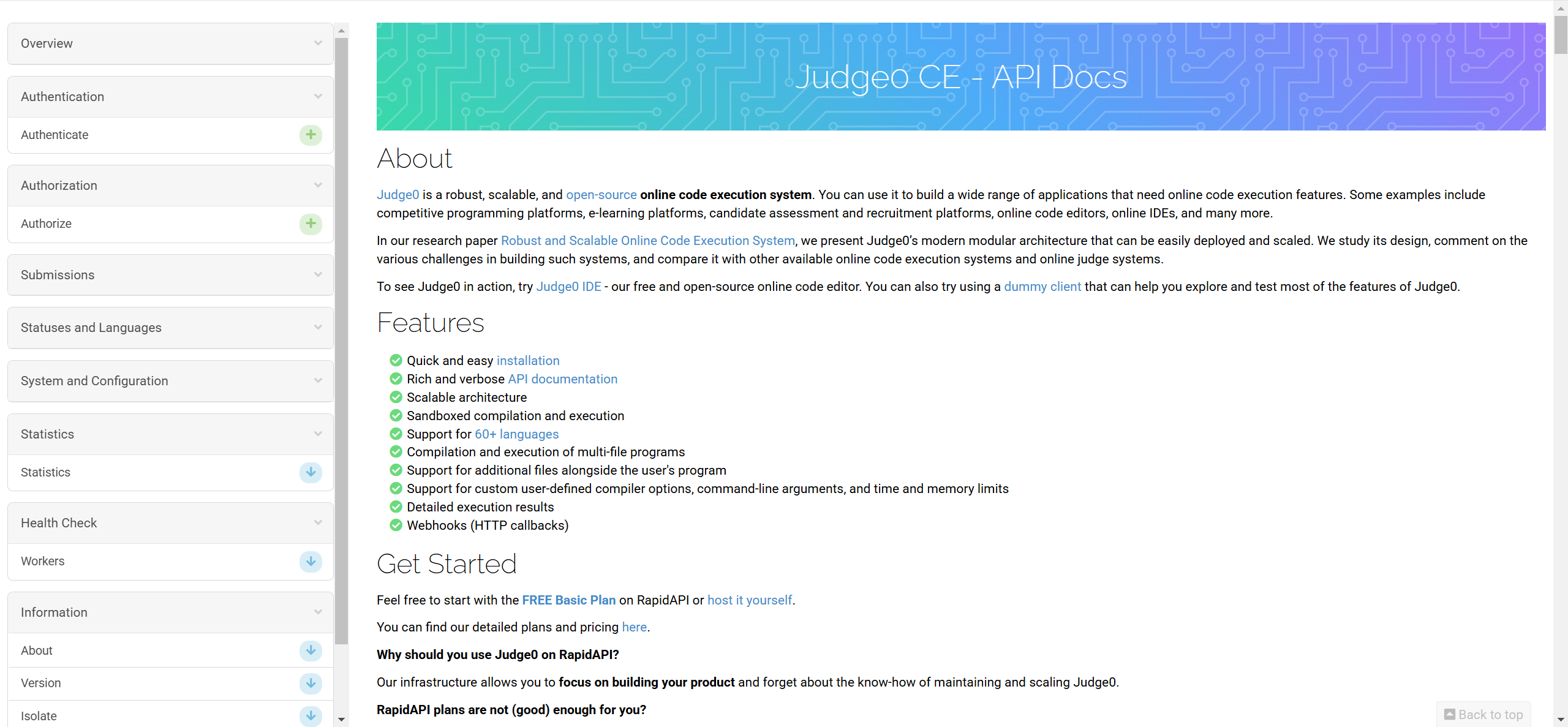

然后访问http://<IP ADDRESS OF YOUR SERVER>:2358/docs可查看文档

PixPin_2025-01-12_21-22-23

判题模块的实现

判题接口定义

定义接口

@RequiredArgsConstructor
@RequestMapping
@RestController
@Slf4j
@Tag(name = "判题相关接口")
public class JudgeController {

    private final JudgeService judgeService;

    @Operation(summary = "判题操作")
    @PostMapping("/judge")
    public Result<Long> judge(@RequestBody JudgeDTO judgeDTO) {
        Long submissionId;
        try {
            submissionId = judgeService.judge(judgeDTO);
        } catch (Exception e) {
            return Result.error("判题服务异常");
        }
        return Result.success(submissionId);
    }

}

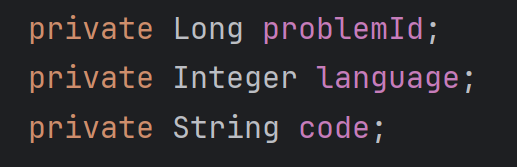

向后端传递以下信息:

PixPin_2025-01-14_20-49-35

判题函数实现

• 这是本项目最核心的模块!!!

首先向这个函数传递源代码,代码语言id,以及内存,运行时间等限制,然后传递输入输出,通过使用线程池创建任务来实现多线程判题,判题流程如下:

首先和判题机建立链接 将判题参数转为json格式

向判题机发送判题请求,同步等待判题机返回判题token

然后使用轮询的方法检查是否判题完成,如果未完成,则重新发送请求判断,其中对相关属性的非空判断尤为重要!!!

判断判题是否通过,如果未通过需要将判题时间和内存设置为0,否则将出现空指针异常

最后关闭链接,返回结果

public JudgeResult simpleJudge(JudgeDomain judge, String input, String output) throws Exception {
        CloseableHttpClient httpClient = HttpClients.createDefault();
        HttpPost httpPost = new HttpPost(configuration.getURL() + "/submissions");

        judge.setStdin(input);
        judge.setExpected_output(output);

        CloseableHttpResponse response;
        String json = JSON.toJSONString(judge);
        StringEntity entity = new StringEntity(json);
        entity.setContentEncoding("utf-8");
        entity.setContentType("application/json");
        httpPost.setEntity(entity);

        response = httpClient.execute(httpPost);
        HttpEntity entity1 = response.getEntity();
        String body = EntityUtils.toString(entity1);
        JudgeToken parse = JSON.parseObject(body, JudgeToken.class);

        HttpGet httpGet = new HttpGet(configuration.getURL() + "/submissions/" + parse.getToken());
        JudgeResult result = null;
        for (int i = 0; i < 10; i++) {
            Thread.sleep(600);
            CloseableHttpResponse execute = httpClient.execute(httpGet);
            HttpEntity entity2 = execute.getEntity();
            String jsonResult = EntityUtils.toString(entity2);
            result = JSON.parseObject(jsonResult, JudgeResult.class);
            if (result == null || result.getStatus() == null) {
                continue;
            }
            if (!(result.getStatus().getId().equals(JudgeResultConstant.InQueue) || result.getStatus().getId().equals(JudgeResultConstant.Processing))) {
                break;
            }
        }
        if (result != null) {
            if (result.getMemory() == null) {
                result.setMemory(0);
            }
            if (result.getTime() == null) {
                result.setTime(0.0);
            }
        }
        response.close();
        httpClient.close();
        return result;
    }

非竞赛判题

此处逻辑较为复杂,我已给出每步操作的注释,请仔细阅读!!!

@Transactional
    public Long judge(JudgeDTO judgeDTO) {
        //获取题目信息
        Problem problem = problemService.getById(judgeDTO.getProblemId());
        List<JudgePoint> judgePointList = judgePointService.lambdaQuery().
                eq(JudgePoint::getProblemId, judgeDTO.getProblemId()).
                list();

        //设置latch便于等待多线程判题结束
        CountDownLatch latch = new CountDownLatch(judgePointList.size());

        //保存本次提交记录,获取id
        Submission submission = new Submission();
        submission.setCreateTime(LocalDateTime.now());
        submission.setUserId(CurrentIdUtils.getCurrentId());
        submission.setProblemId(judgeDTO.getProblemId());
        submissionService.save(submission);

        //设置判题限制
        JudgeDomain dto = JudgeDomain.builder()
                .source_code(judgeDTO.getCode())
                .language_id(judgeDTO.getLanguage())
                .memory_limit(problem.getMemoryLimit() * 1024)
                .stack_limit(problem.getStackLimit())
                .cpu_time_limit(problem.getTimeLimit() / 1000.0)
                .build();

        //创建判题结果队列
        CopyOnWriteArrayList<JudgeResult> results = new CopyOnWriteArrayList<>();

        //开始判题
        try {
            for (JudgePoint judgePoint : judgePointList) {
                executor.execute(() -> {
                    try {
                        JudgeResult result = simpleJudge(dto, judgePoint.getInput(), judgePoint.getOutput());
                        //设置测试点id和测试点输入值
                        result.setPointId(judgePoint.getId());
                        result.setInput(judgePoint.getInput());
                        results.add(result);

                        latch.countDown();
                    } catch (Exception e) {
                        throw new RuntimeException(e);
                    }
                });
            }
            latch.await();
        } catch (Exception e) {
            throw new RuntimeException(e);
        }

        int full = 0;
        int score = 0;
        int judgeTime = 0;
        int judgeMemory = 0;
        int judgeResult = JudgeResultConstant.Accepted;
        boolean flag = true;

        ArrayList<SubPoint> subPointList = new ArrayList<>();

        for (JudgeResult result : results) {
            //将测试点数据加入列表以便批量插入
            SubPoint subPoint = SubPoint.builder()
                    .submissionId(submission.getId()).judgePointId(result.getPointId())
                    .codeLanguage(judgeDTO.getLanguage()).judgeResult(result.getStatus().getId())
                    .judgeMemory(result.getMemory()).judgeTime((int) (result.getTime() * 1000))
                    .input(result.getInput()).output(result.getStdout())
                    .build();
            subPointList.add(subPoint);

            //计算分数
            full++;
            if (subPoint.getJudgeResult().equals(JudgeResultConstant.Accepted)) {
                score++;
            }

            //记录内存和时间(多个测试点的最大值)
            judgeTime = Integer.max(judgeTime, subPoint.getJudgeTime());
            judgeMemory = Integer.max(judgeMemory, subPoint.getJudgeMemory());

            //记录判题总结果(如果有测试点没有编译通过则编译失败,通过有测试点不成功则失败)
            if (flag && subPoint.getJudgeResult().equals(JudgeResultConstant.CompilationError)) {
                judgeResult = JudgeResultConstant.CompilationError;
                flag = false;
            }
            if (flag && !subPoint.getJudgeResult().equals(JudgeResultConstant.Accepted)) {
                judgeResult = subPoint.getJudgeResult();
                flag = false;
            }
        }

        //完善提交记录
        submission.setCodeLanguage(CodeLanguageConstant.getLanguageName(judgeDTO.getLanguage()));
        submission.setJudgeScore((int) ((score * 1.0) / (full * 1.0) * 100));
        submission.setCode(judgeDTO.getCode());
        submission.setJudgeResult(judgeResult);
        submission.setJudgeTime(judgeTime);
        submission.setJudgeMemory(judgeMemory);

        //保存到数据库中
        submissionService.updateById(submission);
        subPointService.saveBatch(subPointList);
        if (full == score) {
            problemService.increaseAC(problem.getId());
        } else {
            problemService.increase(problem.getId());
        }

        return submission.getId();
    }

	@Update("update problem set sub_number = sub_number + 1 where id = #{id}")
    void increase(Long id);

    @Update("update problem set sub_number = sub_number + 1 ,ac_number = ac_number + 1 where id = #{id}")
    void increaseAC(Long id);

判题相关常量

1. 判题机ip地址

   在yaml文件里定义:

   judge:
     URL: http://192.168.154.128:2358

   然后定义相关类读取配置

   @Data
   @Component
   @ConfigurationProperties(prefix = "judge")
   public class JudgeConfiguration {
       private String URL;
   }

2. 判题语言定义

   public class CodeLanguageConstant {

      public static HashMap<Integer, String> languageMap = new HashMap<>();
       static {
           languageMap.put(45, "Assembly (NASM 2.14.02)");
           languageMap.put(46, "Bash (5.0.0)");
           languageMap.put(47, "Basic (FBC 1.07.1)");
           languageMap.put(75, "C (Clang 7.0.1)");
           languageMap.put(76, "C++ (Clang 7.0.1)");
           languageMap.put(48, "C (GCC 7.4.0)");
           languageMap.put(52, "C++ (GCC 7.4.0)");
           languageMap.put(49, "C (GCC 8.3.0)");
           languageMap.put(53, "C++ (GCC 8.3.0)");
           languageMap.put(50, "C (GCC 9.2.0)");
           languageMap.put(54, "C++ (GCC 9.2.0)");
           languageMap.put(86, "Clojure (1.10.1)");
           languageMap.put(51, "C# (Mono 6.6.0.161)");
           languageMap.put(77, "COBOL (GnuCOBOL 2.2)");
           languageMap.put(55, "Common Lisp (SBCL 2.0.0)");
           languageMap.put(56, "D (DMD 2.089.1)");
           languageMap.put(57, "Elixir (1.9.4)");
           languageMap.put(58, "Erlang (OTP 22.2)");
           languageMap.put(44, "Executable");
           languageMap.put(87, "F# (.NET Core SDK 3.1.202)");
           languageMap.put(59, "Fortran (GFortran 9.2.0)");
           languageMap.put(60, "Go (1.13.5)");
           languageMap.put(88, "Groovy (3.0.3)");
           languageMap.put(61, "Haskell (GHC 8.8.1)");
           languageMap.put(62, "Java (OpenJDK 13.0.1)");
           languageMap.put(63, "JavaScript (Node.js 12.14.0)");
           languageMap.put(78, "Kotlin (1.3.70)");
           languageMap.put(64, "Lua (5.3.5)");
           languageMap.put(89, "Multi-file program");
           languageMap.put(79, "Objective-C (Clang 7.0.1)");
           languageMap.put(65, "OCaml (4.09.0)");
           languageMap.put(66, "Octave (5.1.0)");
           languageMap.put(67, "Pascal (FPC 3.0.4)");
           languageMap.put(85, "Perl (5.28.1)");
           languageMap.put(68, "PHP (7.4.1)");
           languageMap.put(43, "Plain Text");
           languageMap.put(69, "Prolog (GNU Prolog 1.4.5)");
           languageMap.put(70, "Python (2.7.17)");
           languageMap.put(71, "Python (3.8.1)");
           languageMap.put(80, "R (4.0.0)");
           languageMap.put(72, "Ruby (2.7.0)");
           languageMap.put(73, "Rust (1.40.0)");
           languageMap.put(81, "Scala (2.13.2)");
           languageMap.put(82, "SQL (SQLite 3.27.2)");
           languageMap.put(83, "Swift (5.2.3)");
           languageMap.put(74, "TypeScript (3.7.4)");
           languageMap.put(84, "Visual Basic.Net (vbnc 0.0.0.5943)");
       }
       public static String getLanguageName(Integer code){
           return languageMap.get(code);
       }
   }

3. 判题结果定义

public class JudgeResultConstant {
    public static final Integer InQueue = 1;
    public static final Integer Processing = 2;
    public static final Integer Accepted = 3;
    public static final Integer WrongAnswer = 4;
    public static final Integer TimeLimitExceeded = 5;
    public static final Integer CompilationError = 6;
    public static final Integer RuntimeErrorSIGSEGV = 7;
    public static final Integer RuntimeErrorSIGXFSZ=8;
    public static final Integer RuntimeErrorSIGFPE=9;
    public static final Integer RuntimeErrorSIGABRT=10;
    public static final Integer RuntimeErrorNZEC=11;
    public static final Integer RuntimeErrorOther=12;
    public static final Integer InternalError=13;
    public static final Integer ExecFormatError=14;

    public static final Map<Integer, String> RESULTS = new HashMap<>();

    static {
        RESULTS.put(InQueue, "In Queue");
        RESULTS.put(Processing, "Processing");
        RESULTS.put(Accepted, "Accepted");
        RESULTS.put(WrongAnswer, "Wrong Answer");
        RESULTS.put(TimeLimitExceeded, "Time Limit Exceeded");
        RESULTS.put(CompilationError, "Compilation Error");
        RESULTS.put(RuntimeErrorSIGSEGV, "Runtime Error SIGSEGV");
        RESULTS.put(RuntimeErrorSIGXFSZ, "Runtime Error SIGXFSZ");
        RESULTS.put(RuntimeErrorSIGFPE, "Runtime Error SIGFPE");
        RESULTS.put(RuntimeErrorSIGABRT, "Runtime Error SIGABRT");
        RESULTS.put(RuntimeErrorNZEC, "Runtime Error NZEC");
        RESULTS.put(RuntimeErrorOther, "Runtime Error Other");
        RESULTS.put(InternalError, "Internal Error");
        RESULTS.put(ExecFormatError, "Exec Format Error");
    }

    public static String getResultById(Integer id){
        return RESULTS.get(id);
    }
}

判题相关流程

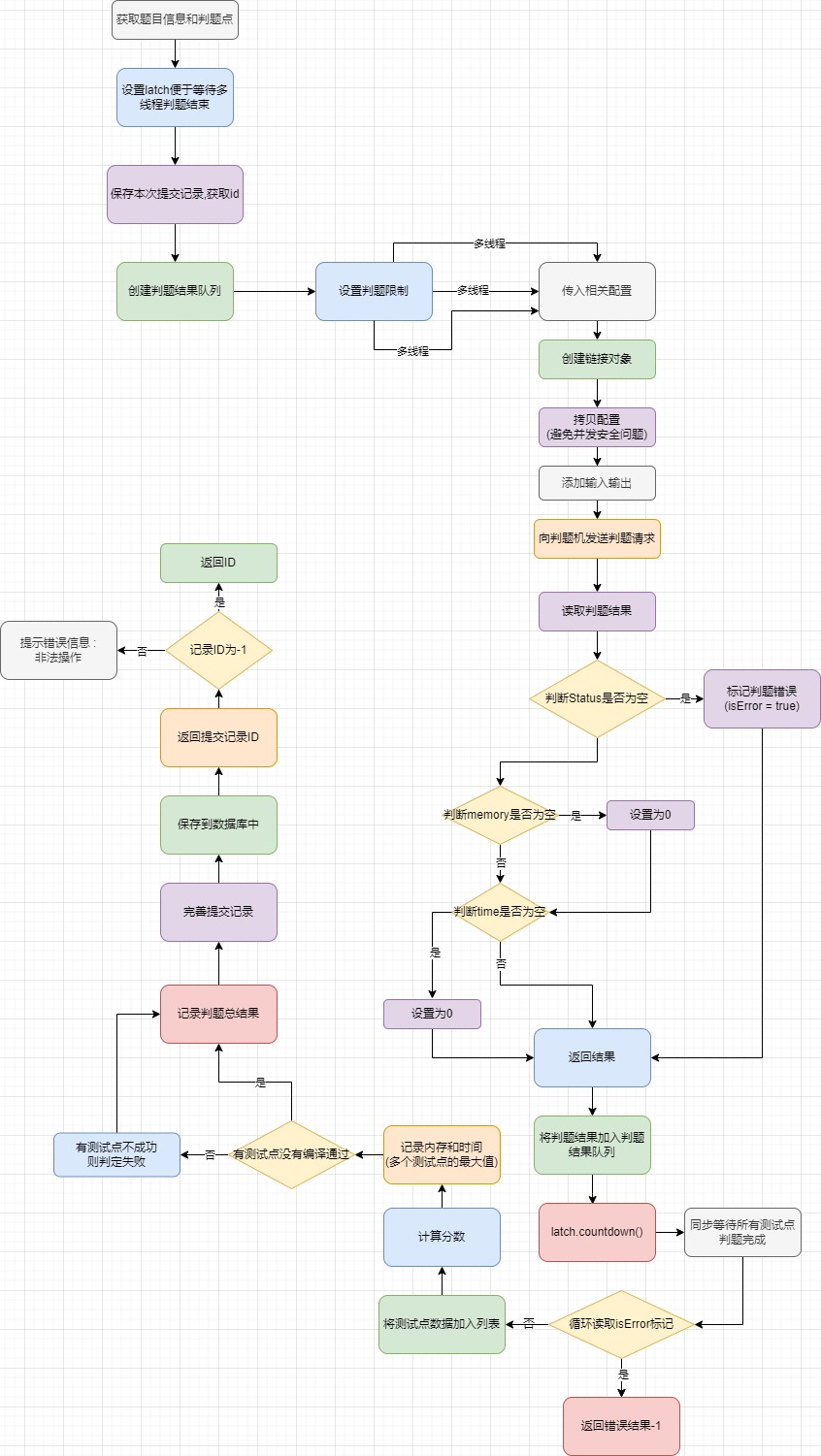

判题流程图

相关实体类的定义

@Builder
@Data
public class JudgeDomain {
    private String source_code;
    private Integer language_id;
    private Integer number_of_runs;
    private String stdin;
    private String expected_output;
    private Double cpu_time_limit;
    private Integer cpu_extra_time;
    private Integer wall_time_limit;
    private Integer memory_limit;
    private Integer stack_limit;
    private Integer max_processes_and_or_threads;
    private Integer enable_per_process_and_thread_time_limit;
    private Integer enable_per_process_and_thread_memory_limit;
    private Integer max_file_size;
    private Integer enable_network;
}

@Data
public class JudgeDTO {

    private Long problemId;
    private Integer language;
    private String code;

}

@Data
public class JudgeResult {
    private String stdout;
    private String input;
    private Long pointId;
    private Double time;
    private Integer memory;
    private String stderr;
    private String token;
    private String compile_output;
    private String message;
    private Status status;
}

@Data
public class JudgeToken {
    private String token;
}

@Builder
@Data
public class JudgeVO {
    private Integer time;
    private Integer memory;
    private String status;
    private Long judgePointId;
}

@Data
@AllArgsConstructor
public class Status {

    private Integer id;
    private String description;
}
